Kafka
BBS thermo | Austria 2006

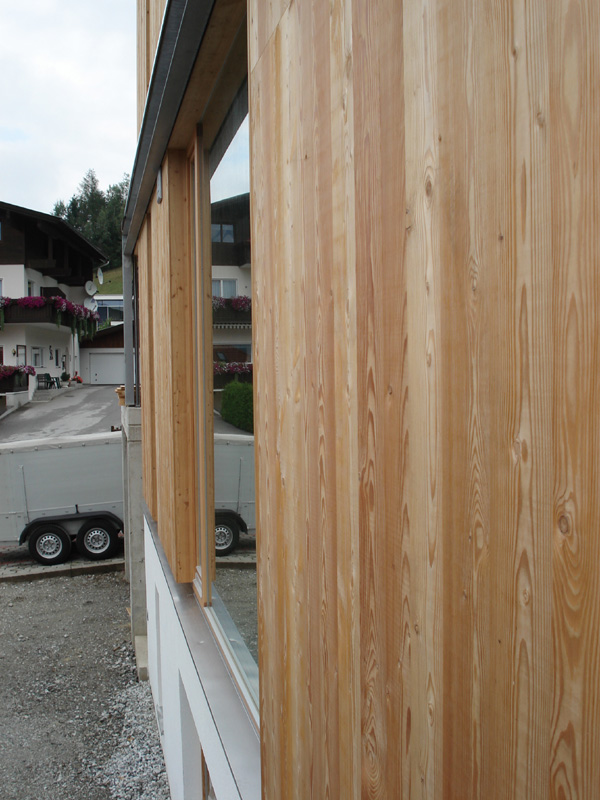

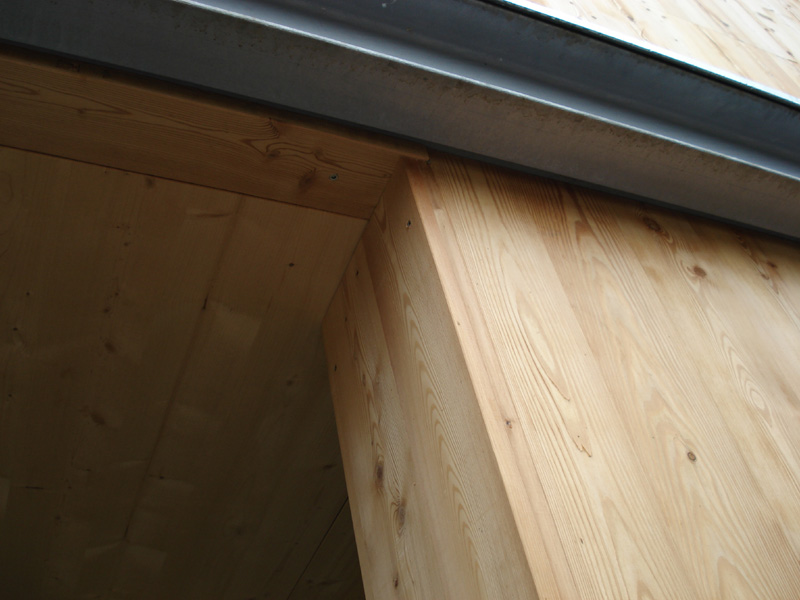

BBS outer walls
11-layers 300 mm, larch outside for use in living areas AB, spruce inside for use in living areas AB
BBS ceiling
7-layers 221 mm, underside and upper side spruce for use in living areas AB The ceiling elements were used as finished floors.
When erecting, all of the surfaces were covered with wood soft fiber plates.

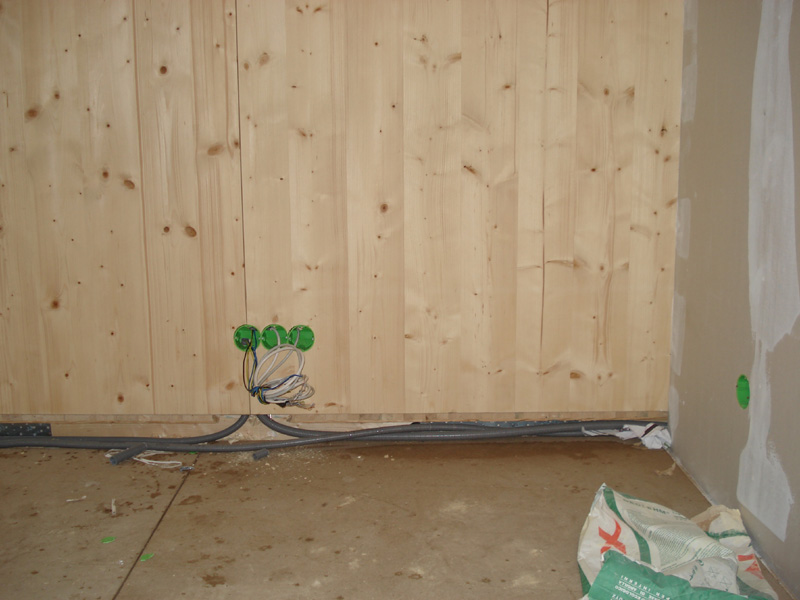

The pipes for the electricity and heating installation were laid in a countersink in the wall element.

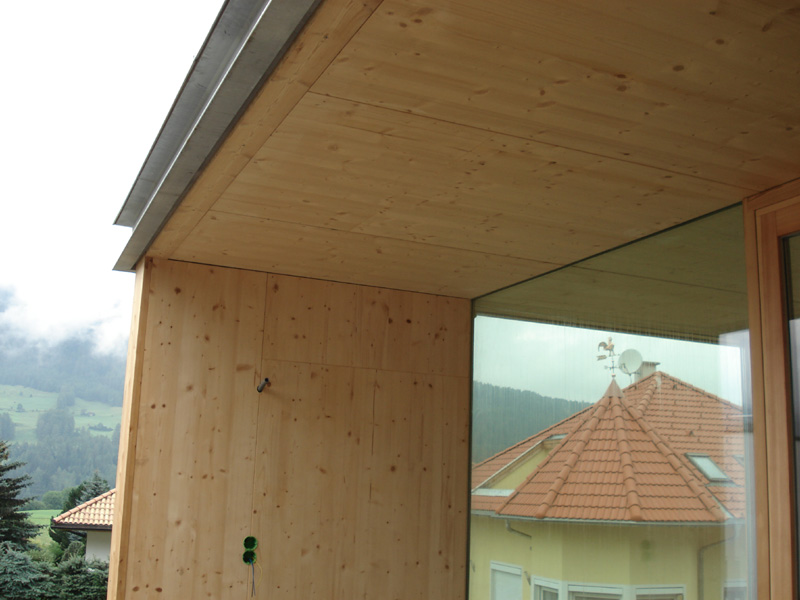

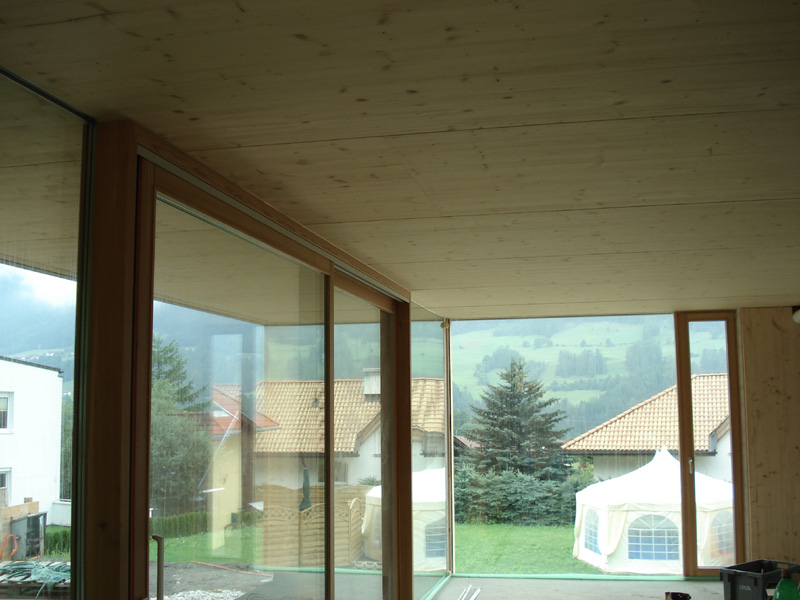

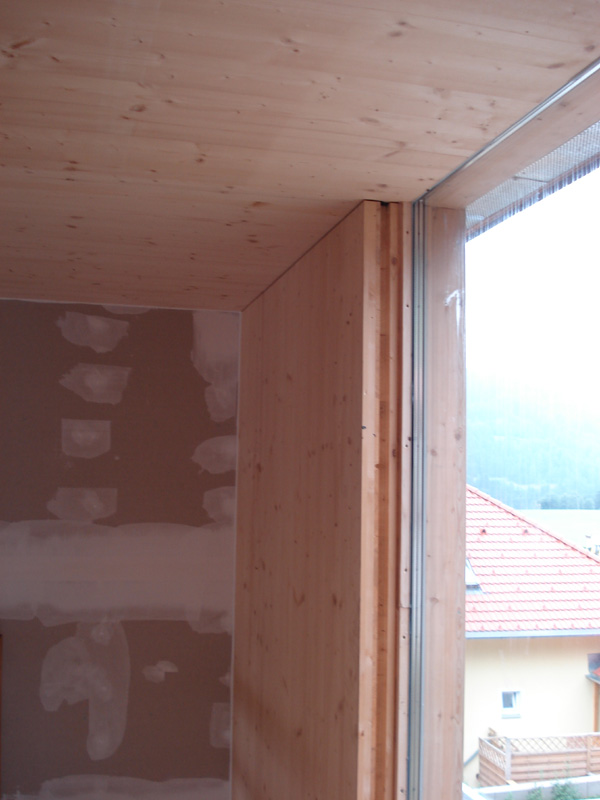

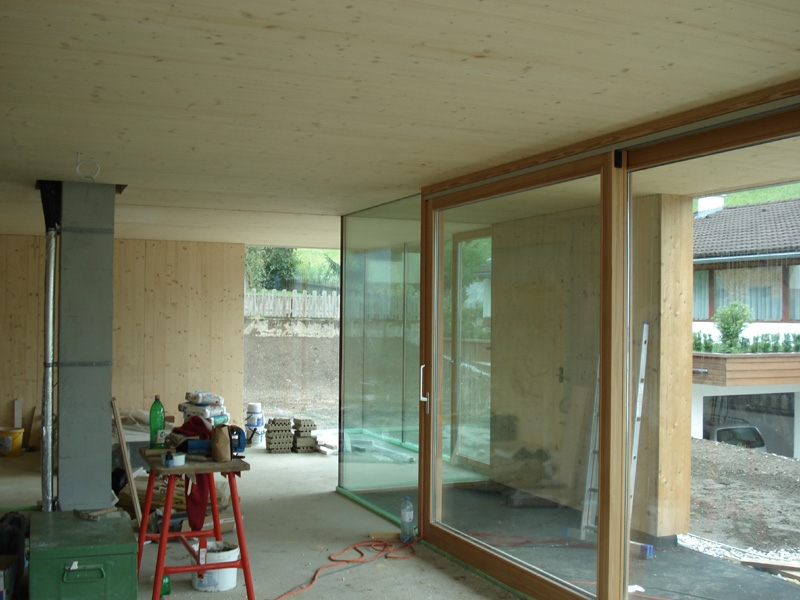

The fixed glazings on the ground floor were connected by means of a countersink in the underside of the ceiling flush with the surfaces.
BBS roof
5-layers 148 mm, underside spruce for use in living areas AB
A Blower door test was carried out on the building.
n50-Wert = 0.70 1h
Heater:

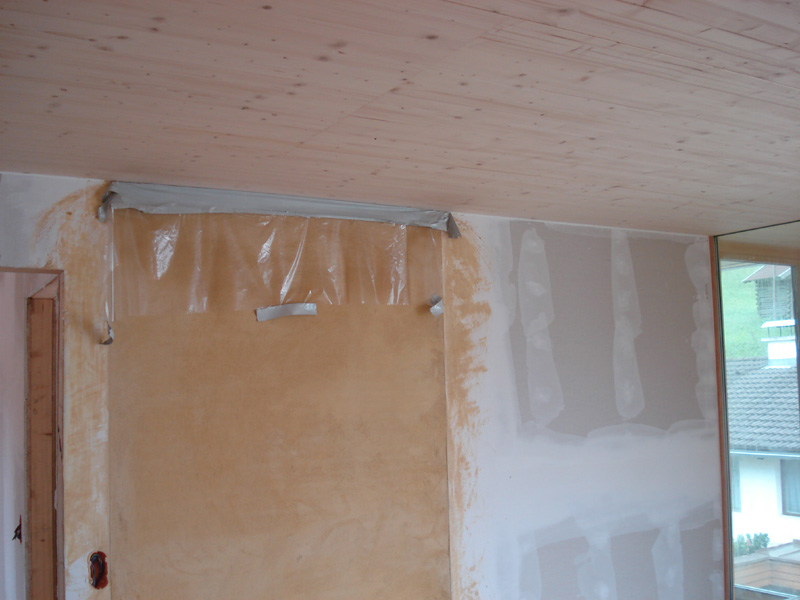

A stove in the living room that transfers the heat into the romm via the clay heating wall.
Executor: www.schafferer.at
Architektur: www.driendl.at | driendl*architects/ ritsch annelies
